Small Rotary Table
  Zoom

Small Rotary Table

Price:  £54.90(Inc. 20% VAT)(£45.75 Exc. VAT)

Ref:  HK1180

One of the most popular uses for a Rotary Table in the small workshop is to quickly and efficiently round the ends of coupling rods and similar components. Worm gearing is not required, being too slow in operation. Positive stops are, however, vital to prevent the cutter exceeding its intended limits.

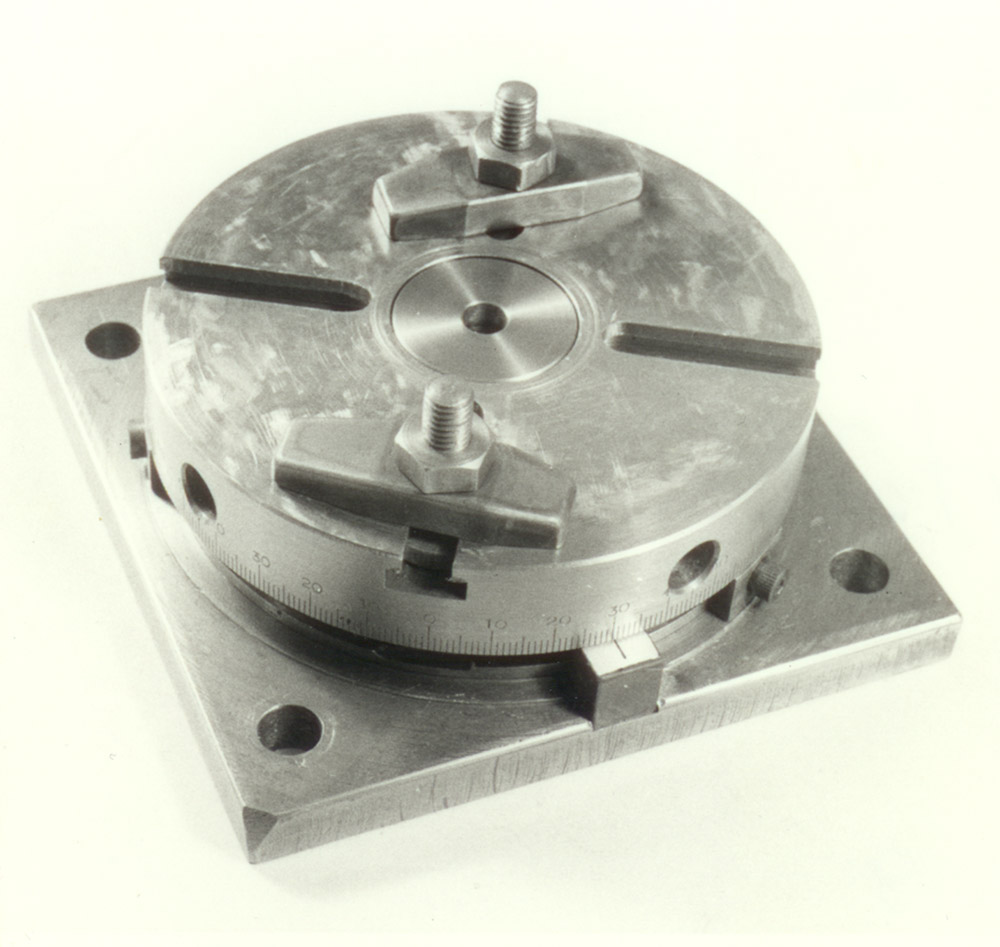

Consequently, GHT's design offers a small, compact Rotary Table of Ø3 3/4", having substantial bearing support. Positive stops are provided to limit angular movement. The dimensions of the cast iron base enable easy mounting onto the lathe vertical-slide or cross slide. The Adapter Casting (HK1185) gives options for mounting this item on a milling machine.

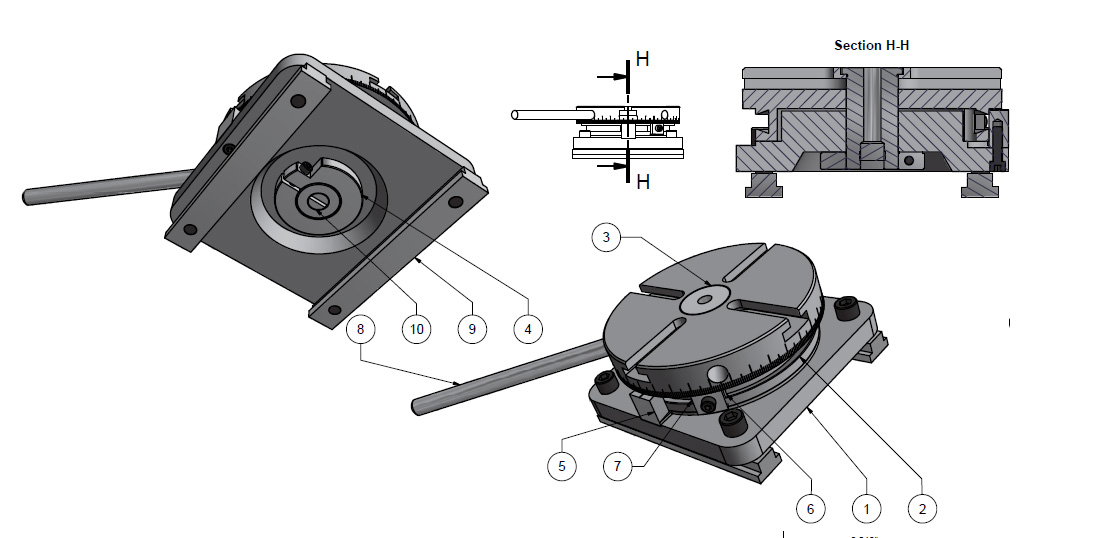

This kit includes the base casting, close grained extruded iron for the table and all necessary steel and fasteners. Hemingway drawings and notes are included of course.

Click the Extended Information tab to learn a little more.

HK1180 - Small Rotary Table

Central pin-position allows components to be precisely located before clamping.
